UNIDENTIFIED
VGA-S364/1, VGA-S364/2
Card Type |
Video card |
Video Chip Set |
S3 |
Maximum Video Memory |
2MB DRAM |
Video Types Supported |
VGA |
Highest Resolution Supported |
1600 x 1200 |
Data Bus |
32-bit PCI |

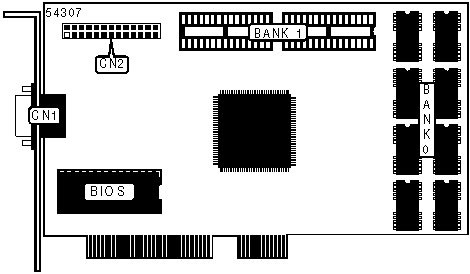

CONNECTIONS | |||
Function |
Label |
Function |
Label |
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
VIDEO MEMORY CONFIGURATION (DRAM) | ||
Size |
Bank 0 |
Bank 1 |
1MB |
(8) 256KB x 16 |
None |
2MB |
(8) 256KB x 16 |
(2) 512KB |
