UNIDENTIFIED
1570SX (REV. A)
Card Type |
Video card |
Video Chip Set |
Unidentified |
Maximum Video Memory |
1MB |
Data Bus |
16-bit ISA |
Video Types Supported |
VGA |
Highest Resolution Supported |
Unidentified |
CONNECTIONS | |
Function |
Label |
15-pin video analog video port |
CN1 |

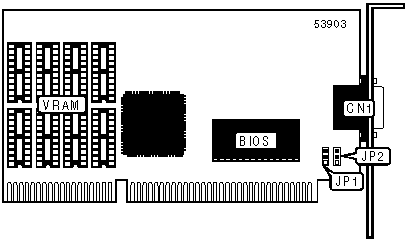

VIDEO MEMORY CONFIGURATION |
Note: Card is factory installed with 256KB memory. It is upgradeable to 512KB or 1MB. The chip size & banks are unidentified. |
VIDEO INTERLACE CONFIGURATION | |||
Interlace |
JP1 |
JP2 | |
» |
Enabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
