VISIONETICS INTERNATIONAL

MPEG MASTER DRAMA/V BOARD

Card Type

MPEG card

Video Chip Set

Unidentified

Highest Resolution Supported

1024 x 768

Maximum Video Memory

None

Data Bus

16-bit ISA

Video Types Supported

XVGA

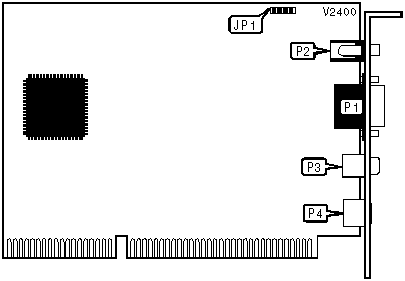

CONNECTIONS

Function

Label

Function

Label

Audio out (Sound card)

JP1

Composite video out (TV)

P3

15-pin video analog port

P1

Y/C video out (TV)

P4

Audio out (Amplifier)

P2
