Category	Video
Video Types Supported	XVGA
Video Processor	Trident
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

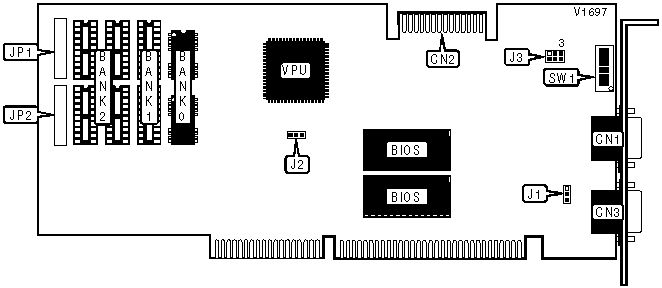

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	9-pin connector (Transistor to transistor logic)	CN3
Feature connector	CN2

SCAN RATE
Setting		SW1/3
»	<48KHz	On
	48 - 49KHz	Off

ADDRESS DECODE
Setting		SW1/5
»	Fast	Off
	Slow	On

DATA PATH SELECT
Setting		SW1/6
»	16-bit	Off
	8-bit	On

INTERRUPT
IRQ 2/9		J1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

BUS SIZE DETECTION
Setting		J2
»	Autodetect	Pins 2 & 3 closed
	Standard interface	Pins 1 & 2 closed

DRAM SELECT
Setting	J3	JP1	JP2
256KB	Pins 1 & 2, 4 & 5 closed	Open	Closed
512KB	Pins 1 & 4, 2 & 5 closed	Open	Closed
1MB	Pins 2 & 3, 5 & 6 closed	Closed	Open
Note: The exact # of pins on JP1 & JP2 is unidentified by the manufacturer.

MONITOR TYPE
Setting		SW1/1	SW1/2
»	VGA	On	On
	EGA	Off	On
	CGA	On	Off
	Monochrome/Hercules	Off	Off

FACTORY CONFIGURED - DO NOT ALTER
Switch	Position
SW1/4	On

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
256KB	(2) 256K x 4	NONE	NONE
512KB	(2) 256K x 4	(2) 256K x 4	NONE
1MB	(2) 256K x 4	(2) 256K x 4	(4) 256K x 4
