WILLOW PERIPHERALS

VGA-CTV

Category

Video

Video Types Supported

XVGA

Video Processor

ET4000/W32P,ET4000/W33 VIPER

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

2MB (Exact location of memory is unidentified)

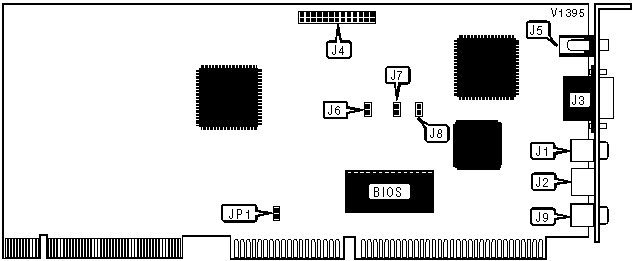

CONNECTIONS

Purpose

Location

Purpose

Location

Composite video input - RCA jack

J1

VGA feature connector

J4

S-video input

J2

Mono/stereo phone jack

J5

15-pin analog video port

J3

Composite video input - RCA jack

J9

INTERRUPT CONFIGURATION

IRQ 2/9

JP1

Disabled

Open

Enabled

Closed

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

J6

Open

J7

Open

J8

Open
