WILLOW PERIPHERALS
PUBLISHER'S GS
|
Category |
Video capture card |
|
Video Types Supported |
VGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
640 x 480 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB (Exact location of memory is unidentified) |
|

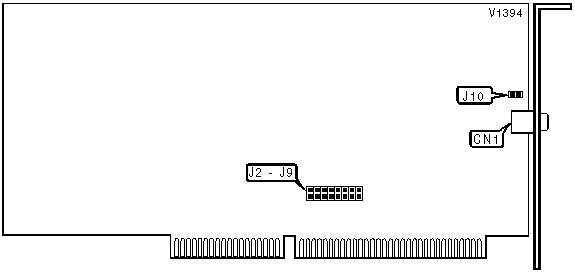

CONNECTIONS |
|
|
Purpose |
Location |
|
Composite video input - RCA jack |
CN1 |
|
BASE I/O ADDRESS SELECTION |
||||||||
|
Address |
J2 |
J3 |
J3 |
J5 |
J6 |
J7 |
J8 |
J9 |
|
300h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
310h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
320h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
330h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
340h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
350h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
360h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
370h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Note: Address 310h is not used with the VGA-TV or VGA-TV GE/O when used in conjunction with the Publisher's GS. |
||||||||
|
VIDEO INPUT TERMINATION |
||
|
Setting |
J10 |
|
|
» |
75 Ohm termination |
Closed |
|
|
Another device terminates the video signal |
Open |
