Category

Video

Video Types Supported

XVGA

Video Processor

Trident TVGA8900D

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

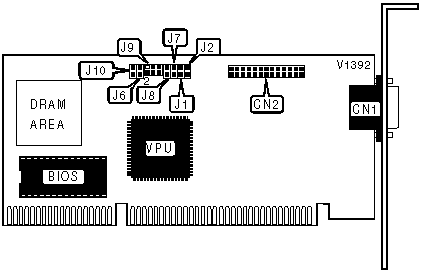

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

FIRST ZERO WAIT STATE CONFIGURATION

Setting

J2

»

Enabled

Closed

Disabled

Open

SECOND ZERO WAIT STATE CONFIGURATION

Setting

J1

»

Enabled

Open

Disabled

Closed

VGA SCAN RATE CONFIGURATION

Rate

J7

»

Normal

Closed

48.7KHz

Open

BIOS AUTODETECT CONFIGURATION

Setting

J8

Enabled

Open

Disabled

Closed

ISA BUS SLOT SELECTION

Bus

J6

J9

J10

16-bit

Open

Open

Closed

8-bit

Closed

Pins 1 & 2, 3 & 4, 5 & 6 closed

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

512KB

512KB

NONE

1MB

512KB

512KB

Note: Exact configuration of DRAM memory is unidentified.
