Category	Video
Video Types Supported	XVGA
Video Processor	Oak Technology, Inc.
Highest Resolution Supported	800x600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

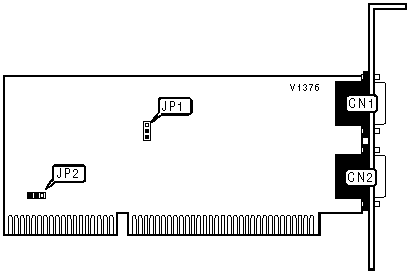

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	Unidentified	9-pin digital video port	Unidentified
Note: The relative significance of video ports CN1 and CN2 is unidentified.

SYSTEM TYPE SELECTION
Type	JP2
AT-compatible	Pins 2 & 3 closed
XT-compatible	Pins 1 & 2 closed

IRQ2 SELECTION
Setting		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed
