Category

Video

Video Types Supported

XVGA

Video Processor

Realtek RTG3106

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

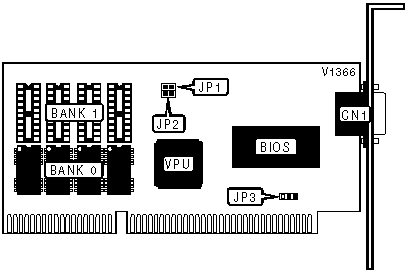

CONNECTIONS

Purpose

Location

15-pin analog video port

CN1

RESOLUTION (1024 X 768) MODE CONFIGURATION

Mode

JP1

»

Interlaced

Open

Non-interlaced

Closed

ADDRESS DECODING CONFIGURATION

Speed

JP2

»

Unlatched (Fast)

Open

Latched (Slow)

Closed

INTERRUPT SELECTION

IRQ

JP3

2/9

Pins 1 & 2 closed

7

Pins 2 & 3 closed

DRAM CONFIGURATION

Memory

Bank 0

Bank 1

512KB

(4) 256K x 4

NONE

1MB

(4) 256K x 4

(4) 256K x 4
