UNIDENTIFIED

SYSDYNE! CMG

Category

Video

Video Types Supported

Monochrome/CGA

Video Processor

Unidentified

Highest Resolution Supported

720 x 350

Data Bus Type

8-bit ISA

Memory Type

N/A

Maximum Onboard Memory

N/A

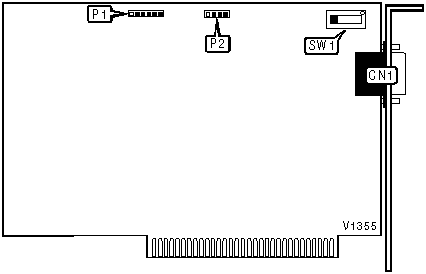

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

4-pin composite video connector

P2

6-pin light pen connector

P1



MONITOR SELECTION

Setting

SW1

Color

Forward

Monochrome

Rearward
