UNIDENTIFIED
TVGA 9000
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Trident TVGA 9000 |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|

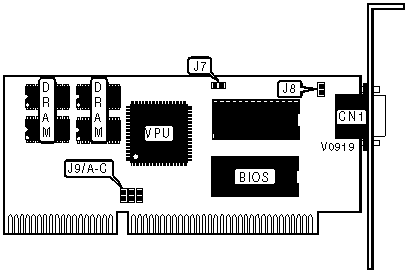

CONNECTIONS |
|
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
SCAN RATE SELECTION |
||
|
Speed |
J7 |
|
|
» |
<48.7Khz |
Closed |
|
|
>=48.7Khz |
Open |
|
AUTODETECT CONFIGURATION |
||
|
Setting |
J8 |
|
|
» |
Enabled |
Open |
|
|
Disabled |
Closed |
|
BUS TYPE SELECTION |
||||
|
Setting |
J9/A |
J9/B |
J9/C |
|
|
» |
16-bit slot |
Open |
Open |
Open |
|
|
8-bit slot |
Closed |
Closed |
Closed |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(2)256K x 4 |
NONE |
|
512KB |
(2)256K x 4 |
(2)256K x 4 |
|
Note: The relative locations of Bank 0 & Bank 1 are unidentified. |
||
