UNIDENTIFIED
ZEGA-LONG
Category |
Video |
Video Types Supported |
EGA |
Video Processor |
Unidentified |
Highest Resolution Supported |
720 x 350 (monochrome) |
Data Bus Type |
8-bit ISA |
Memory Type |
DRAM |
Maximum Onboard Memory |
256KB |

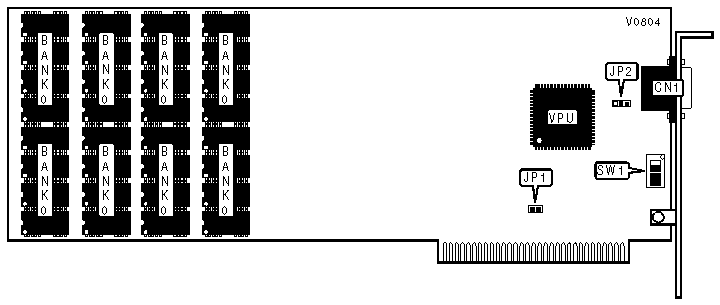

CONNECTIONS | |
Purpose |
Location |
9-pin digital video port |
CN1 |
I/O ADDRESS | ||
» Address |
JP1 | |
» |
3XXh |
Closed |
» |
2XXh |
Open |
MONITOR TYPE | ||
» Setting |
JP2 | |
» |
EGA monitor |
Pins 2 & 3 closed |
» |
Non-EGA monitor |
Pins 1 & 2 closed |
DISPLAY SETTINGS | |||||
» Setting |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 | |
» |
EGA (640 x 350) |
Off |
On |
On |
Off |
» |
CGA (320 x 200) |
Off |
On |
On |
On |
» |
Monochrome/(80 x 25 color secondary) |
Off |
On |
Off |
Off |
» |
Monochrome/(40 x 25 color secondary) |
Off |
On |
Off |
On |
» |
Color (80 x 25) |
On |
Off |
Off |
Off |
» |
Color (40 x 25) |
On |
Off |
Off |
On |
