Category	Video
Video Types Supported	VGA
Video Processor	Unidentified
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

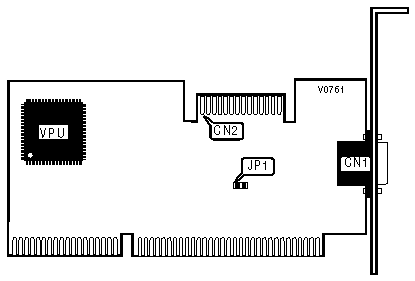

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

ZERO WAIT STATE SELECT
Setting		JP1
»	Disabled	Open
	Enabled	Closed
