UNIDENTIFIED
CHEETAH XL
Category |
Video |
Video Types Supported |
XVGA |
Video Processor |
Cirrus Logic, Inc. |
Highest Resolution Supported |
1280 x 1024 |
Data Bus Type |
VESA local bus |
Memory Type |
DRAM |
Maximum Onboard Memory |
2MB |

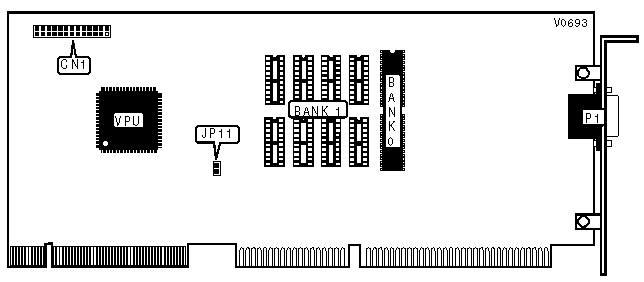

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
15-pin analog video port |
P1 |
VESA Feature connector |
CN1 |
IRQ9 | |
Setting |
JP1 |
» Disabled |
Open |
Enabled |
Closed |
DRAM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
» 1MB |
(2) 512K x 8 |
None |
2MB |
(2) 512K x 8 |
(8) 256K x 4 |
