Category	Video
Video Types Supported	XVGA
Video Processor	Trident
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	2048KB

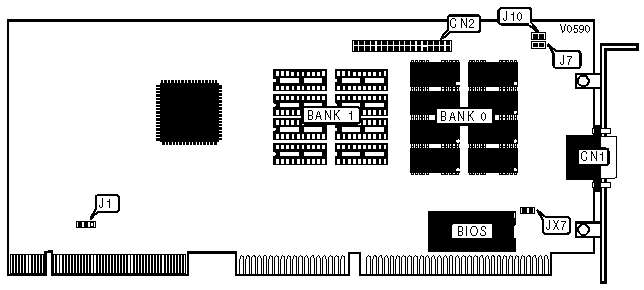

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	CN2

MONITOR INTERLACE CONFIGURATION
Setting		J7
»	Interlaced	Closed
	Non-interlaced	Open

CPU CLOCK CONFIGURATION
Speed(MHz)		JX7
»	<=33MHz	Open
	>33MHz	Closed

VESA LOCAL BUS TIMING
Setting		J1
»	Standard	Pins 2 & 3 closed
	Alternate	Pins 1 & 2 closed

DMCLK CONFIGURATION
Frequency		J10
»	80MHz	Open
	MHz	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1024KB	(8) 256K x 4	NONE
2048KB	(8) 256K x 4	(8) 256K x 4
