UNIDENTIFIED

VGA-16T/89C

Category

Video

Video Types Supported

CGA, EGA, Hercules, MGA, VGA, XVGA

Video Processor

Trident

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1024KB

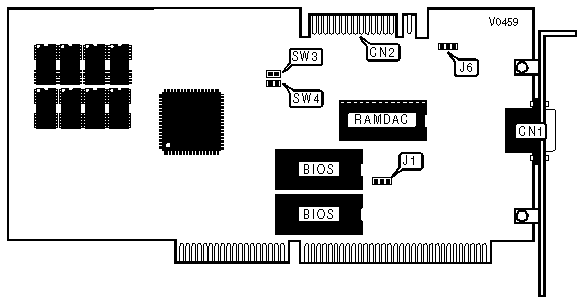

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA Feature connector

CN2

INTERRUPT SELECT

IRQ9

J1

»

Disabled

Pins 2 & 3 closed



Enabled

Pins 1 & 2 closed

MONITOR TYPE

Type

J6

»

Standard color

Pins 1 & 2 closed



Non-standard color(Samsung, Goldstar)

Open



Non-standard monochrome

Pins 2 & 3 closed

SCAN RATE SELECT

Rate

SW3

»

Normal

Open



48.7KHz

Closed

SLOT SIZE AUTODETECT

Setting

SW4

Enabled

Open

Disabled

Closed
