UNIDENTIFIED
LCD PORTABLE EGA
|
Category |
Video |
|
Video Types Supported |
CGA/EGA/Monochrome |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
600 x 350 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB |
|

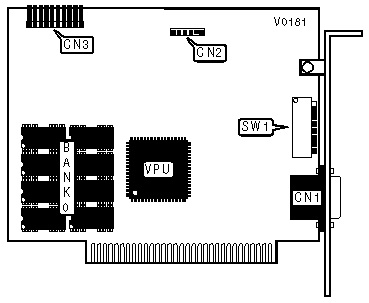

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video connector |
CN1 |
LCD display connector |
CN3 |
|
Light pen connector |
CN2 | ||
|
MONITOR TYPE SELCTION | |||||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/7 |
SW1/8 |
|
CGA 40 x 25 |
On |
Off |
Off |
On |
On |
Off |
Off |
|
CGA 80 x 25 |
On |
On |
On |
Off |
On |
Off |
Off |
|
EGA 80 x 25 |
Off |
On |
On |
Off |
On |
Off |
Off |
|
Mono 40 x 25 |
On |
Off |
On |
Off |
On |
Off |
Off |
|
Mono 80 x 25 |
Off |
Off |
On |
Off |
On |
Off |
Off |
|
DISPLAY TYPE CONFIGURATION | |
|
Type |
SW1/6 |
|
LCD |
Off |
|
External CRT |
On |
