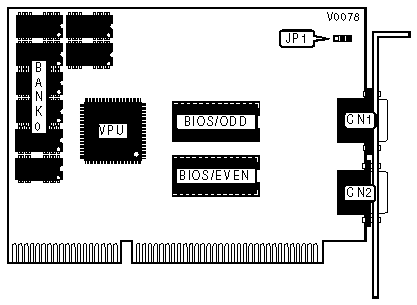

UNIDENTIFIED

SUPER VGA MODEL 1515H

Category

Video

Video Types Supported

Monochrome/VGA

Video Processor

OTI-037

Highest Resolution Supported

800 X 600

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

256KB

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

9-pin TTL video port

CN2

MONITOR TYPE SELECTION

Type

JP1

»

Color

Pins 2 & 3 closed



Monochrome

Pins 1 & 2 closed
