WESTERN DIGITAL CORPORATION

AUTOSWITCH MONOCHROME EGA

Category

Video

Video Types Supported

EGA/Monochrome

Video Processor

WD PEGA1A

Highest Resolution Supported

800 x 600

Data Bus Type

8-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

256KB

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

25-pin parallel port

CN2

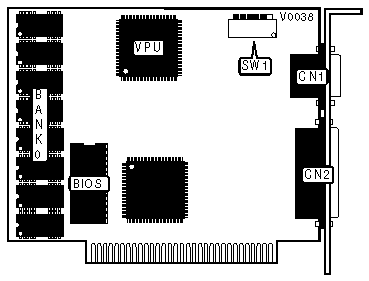

AUTOSWITCH CONFIGURATION

Setting

SW1/1

»

Enabled

On



Disabled

Off

START UP CONFIGURATION

Setting

SW1/2

Color simulation mode

On

True monochrome

Off

DUAL MONITOR CONFIGURATION

Display

Autoswitch card

SW1/1

SW1/2

SW1/3

IBM monochrome display adapter

Color simulation as primary display

Off

On

On

IBM monochrome display adapter

Color simulation as secondary display

Off

Off

On

IBM color/graphics adapter

True monochrome as primary display

Off

On

Off

IBM color/graphics adapter

True monochrome as secondary display

Off

Off

Off

PARALLEL PORT CONFIGURATION

LPT

SW1/5

SW1/6

»

1

Off

On



2

On

Off



3

On

On



Disabled

Off

Off

FACTORY CONFIGURED - DO NOT ALTER

Switch

Position

SW1/4

N/A
