TSENG LABORATORIES, INC.

ULTRAPAK-SHORT

Card Type

Video display card

Video Chip Set

Unidentified

Maximum Video Memory

Unidentified

Video Types Supported

Monochrome, CGA

Highest Resolution Supported

720 x 348

Data Bus

8-bit ISA

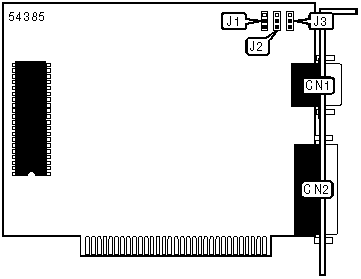

CONNECTIONS

Function

Label

Function

Label

9-pin analog video port

CN1

25-pin parallel port

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

Color and monochrome cards in system

J3

Pins 1 & 2 closed

Monochrome only

J3

Pins 2 & 3 closed

PARALLEL PORT ADDRESS SELECTION

Setting

J1

J2

LPT1 (378h)

Pins 1 & 2 closed

Pins 1 & 2 closed

LPT2 (278h)

Pins 2 & 3 closed

Pins 2 & 3 closed
