TRUEVISION, INC.

TARGA+

Card Type

Video card

Video Chip Set

Unidentified

Maximum Video Memory

Unidentified

Data Bus

16-bit ISA

Video Types Supported

VGA

Highest Resolution Supported

1280 x 1024

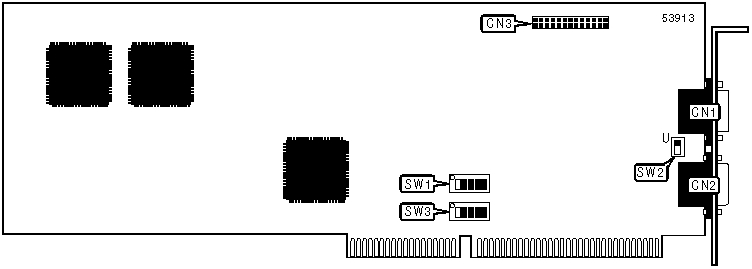

CONNECTIONS

Function

Label

Function

Label

Composite video in

CN1

Feature connector

CN3

Composite video out

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

TARGA compatible mode enabled (non contiguous I/O mapping)

SW1/4

On



TARGA compatible mode disabled (contiguous I/O mapping)

SW1/4

Off

»

Factory configured - do not alter

SW1/5

On

»

H/V sync output

SW2

Down



S-video installed

SW2

Up

»

IRQ request shared

SW3/5

Off



IRQ request not shared

SW3/5

On

INTERRUPT SELECTION

IRQ

SW3/1

SW3/2

SW3/3/

SW3/4

IRQ3

On

Off

Off

Off

IRQ7

Off

On

Off

Off

IRQ10

Off

Off

On

Off

IRQ15

Off

Off

Off

On

BASE I/O ADDRESS SELECTION

Setting

SW1/1

SW1/2

SW1/3

200

On

On

On

210

On

On

Off

220

On

Off

On

230

On

Off

Off

240

Off

On

On

250

Off

On

Off

260

Off

Off

On

270

Off

Off

Off
