STB SYSTEMS, INC.

TV PCI

Card Type

Tuner Adapter Card

Video Chip Set

Tseng Labs

Maximum Video Memory

2.25 MB MDRAM

Video Types Supported

XVGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit PCI

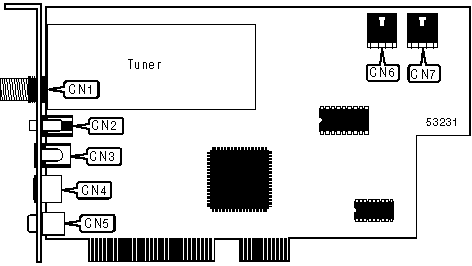

CONNECTIONS

Function

Label

Function

Label

TV antenna input

CN1

Video line input

CN5

Stereo Audio input

CN2

CD-ROM Audio input

CN6

12v power output

CN3

CD-ROM Audio output

CN7

S-video input

CN4
