SPEA SOFTWARE AG
V7 VEGA CARD (SHORT CARD)
|
Card Type |
Video card |
|
Video Processor |
Video Seven |
|
Maximum Onboard Memory |
256KB DRAM |
|
I/O Options |
Feature connector, light pen port |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
EGA |
|
Highest Resolution Supported |
640 x 350 |
|

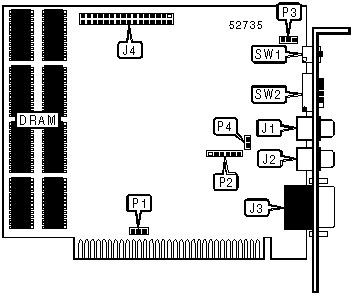

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unidentified |
J1 |
Feature connector |
J4 |
|
Unidentified |
J2 |
Light pen port |
P2 |
|
9-pin EGA port |
J3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Base I/O address set to 3D0h |
P3 |
Pins 1 & 2 closed |
|
Base I/O address set to 2D0h |
P3 |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
P4 |
Unidentified |
| » |
Card is installed in normal slot |
P6 |
Pins 2 & 3 closed |
|
Card is installed in XT slot 8 |
P6 |
Pins 1 & 2 closed | |
| » |
Card will emulate CGA and MDA modes as necessary |
SW2/5 |
On |
|
Card is 100% EGA compatible |
SW2/5 |
Off | |
|
MONITOR TYPE (EGA PRIMARY) | ||||||
|
Primary |
Secondary |
SW1 |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
CGA, 40 x 25 |
Monochrome |
Off |
On |
Off |
Off |
On |
|
CGA, 80 x 25 |
Monochrome |
Off |
Off |
Off |
Off |
On |
|
EGA, 40 x 25 |
Monochrome |
On |
On |
On |
On |
Off |
|
EGA, 80 x 25 |
Monochrome |
On |
Off |
On |
On |
Off |
|
Monochrome |
CGA, 40 x 25 |
Off |
On |
Off |
On |
Off |
|
Monochrome |
CGA, 80 x 25 |
Off |
Off |
Off |
On |
Off |
|
MONITOR TYPE (EGA SECONDARY) | ||||||
|
Primary |
Secondary |
SW1 |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
Monochrome |
CGA, 40 x 25 |
Off |
On |
On |
On |
On |
|
Monochrome |
CGA, 80 x 25 |
Off |
Off |
On |
On |
On |
|
Monochrome |
EGA, 40 x 25 |
On |
On |
Off |
On |
On |
|
Monochrome |
EGA, 80 x 25 |
On |
Off |
Off |
On |
On |
|
CGA, 40 x 25 |
Monochrome |
Off |
On |
On |
Off |
On |
|
CGA, 80 x 25 |
Monochrome |
Off |
Off |
On |
Off |
Off |
