SPEA SOFTWARE AG

V7 VEGA 16-BIT VGA

Card Type

Video card

Video Chip Set

Unidentified

Highest Resolution Supported

800 x 600

Maximum Video Memory

256KB RAM (Location unidentified)

Data Bus

16-bit ISA

Video Types Supported

VGA

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1

VGA Feature connector

CN2

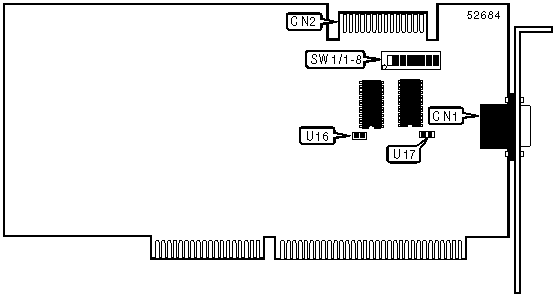

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

SW1/1

Off

»

Factory configured - do not alter

SW1/2

Off

»

Factory configured - do not alter

SW1/3

Off

»

Factory configured - do not alter

SW1/4

Off

»

VGA-16 Emulation enabled

SW1/5

On



VGA-16 Emulation disabled

SW1/5

Off

»

Allow 16-bit ROM access

SW1/6

On



Force 8-bit ROM access

SW1/6

Off

»

Allow 16-bit memory access

SW1/7

On



Force 8-bit memory access

SW1/7

Off

»

Allow VGA-16 Extensions

SW1/8

Off



Force Standard VGA mode

SW1/8

On

»

Factory configured - do not alter

U16

Unidentified

»

Factory configured - do not alter

U17

Unidentified
