TANDY/RADIO SHACK

DUAL DISPLAY GRAPHICS ADAPTER (250-3045A)

Card Type

Video card

Video Processor

6845

Data Bus

8-bit ISA

Video Types Supported

Monochrome, CGA, Plantronics

Highest Resolution Supported

720 x 348

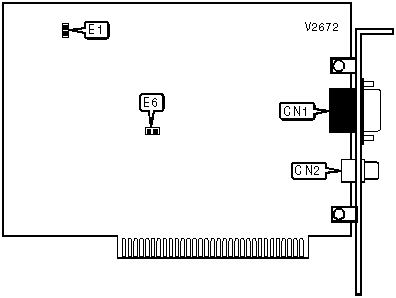

CONNECTIONS

Function

Label

Function

Label

9-pin video out connector

CN1

Composite video out connector

CN2

VIDEO MODE

Setting

E1

E6

Color mode

Closed

Open

Monochrome mode

Open

Closed
