TANDY/RADIO SHACK

GRAPHICS DISPLAY ADAPTER (250-3043)

Card Type

Video card

Video Processor

Unidentified

Data Bus

8-bit ISA

Video Types Supported

CGA

Highest Resolution Supported

640 x 200

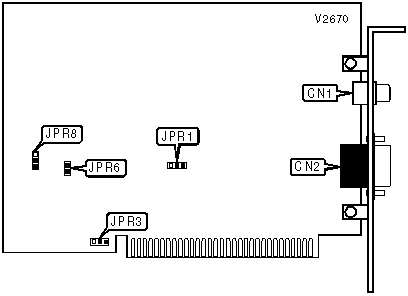

CONNECTIONS

Function

Label

Function

Label

Composite video out

CN1

9-pin color video out

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JPR1

Pins 1 & 2 closed

»

Factory configured - do not alter

JPR3

Pins 1 & 2 closed

»

Factory configured - do not alter

JPR6

Closed

»

Card will operate in monochrome mode

JPR8

Pins 2 & 3 closed



Card will operate in color mode

JPR8

Pins 1 & 2 closed
