TELEVIDEO SYSTEMS, INC.

TELEMPEG PRO

Card Type

Video MPEG card,

Video Chip Set

Philips

Highest Resolution Supported

1024 x 768

Maximum Video Memory

Unidentified

Data Bus

16-bit ISA

Video Types Supported

XVGA

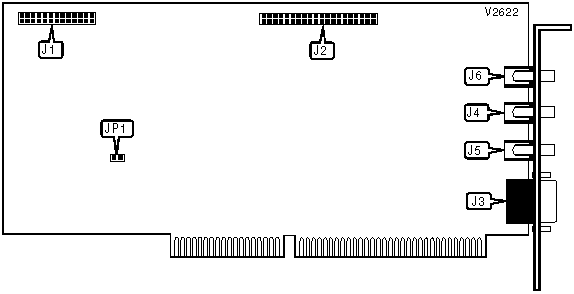

CONNECTIONS

Function

Label

Function

Label

Feature connector

J1

Video out

J4

TeleTune Pro connector

J2

Loopback connector

J5

15-pin analog video port

J3

Audio out

J6

MISCELLANEOUS TECHNICAL NOTE

Note: The configuration of JP1 is unidentified.
