SIGMA DESIGNS, INC.
COLOR 400 (VER.2.51)
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
640 x 400 |
|
Maximum Video Memory |
Unidentified |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
VGA |
|

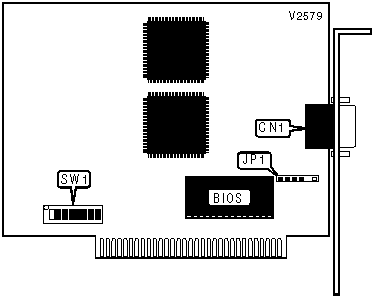

CONNECTIONS | |
|
Function |
Label |
|
15-pin analog video port |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Light pen connector configured for most computers |
JP1 |
Open |
|
Light pen connector alternate configuration |
JP1 |
Pins 3 & 4 closed | |
| » |
I/O read enabled at 3DAh |
SW1/6 |
On |
|
I/O read disabled at 3DAh |
SW1/6 |
Off | |
|
MONITOR TYPE SELECTION | ||
|
Type |
SW/7 |
SW1/8 |
|
NEC 1401P3A |
On |
On |
|
PGS SR-12 |
On |
On |
|
TANDY CM-1 |
Off |
Off |
|
TAXAN 630 |
Off |
Off |
|
TAXAN 640 |
Off |
Off |
|
ROM SIZE SELECTION | ||
|
Setting |
SW1/5 | |
| » |
8-bit |
Off |
|
16-bit |
On | |
|
BIOS MEMORY ADDRESS SELECTION | |||
|
Address |
SW1/3 |
SW1/4 | |
| » |
CC00:0 |
On |
On |
|
C400:0 |
On |
Off | |
|
CC00:0 |
On |
Off | |
|
D800:0 |
Off |
On | |
|
C000:0 |
Off |
Off | |
|
D000:0 |
Off |
Off | |
|
BASE I/O ADDRESS SELECTION | |||
|
Address |
SW1/1 |
SW1/2 | |
| » |
2D0h - 2DFh |
On |
On |
|
2C0h - 2CFh |
On |
Off | |
|
250h - 25Fh |
Off |
On | |
|
350h - 35Fh |
Off |
Off | |
