Card Type	Video card
Video Chip Set	Tseng Labs ET4000
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	2MB DRAM
I/O Options	Bus mouse port
Data Bus	16-bit ISA
Video Types Supported	XVGA

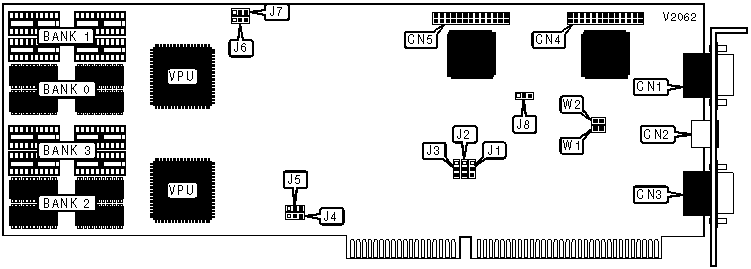

CONNECTIONS
Function	Label	Function	Label
VGA port 1 - 15-pin	CN1	VGA feature connector for channel 1	CN4
Bus mouse port	CN2	VGA feature connector for channel 2	CN5
VGA port 2 - 15-pin	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Zero wait states enabled	J1	Pins 2 & 3 closed
	Zero wait states disabled	J1	Pins 1 & 2 closed
»	Video BIOS uses 16-bit data transfer	J2	Pins 2 & 3 closed
	Video BIOS uses 8-bit data transfer	J2	Pins 1 & 2 closed
»	Card uses 16-bit data transfer	J3	Pins 2 & 3 closed
	Card uses 8-bit data transfer	J3	Pins 1 & 2 closed
»	VPU runs at 50MHz	J4	Pins 2 & 3 closed
	VPU runs at 40MHz	J4	Pins 1 & 2 closed
»	Bus mouse enabled	J8	Pins 2 & 3 closed
	Bus mouse disabled	J8	Pins 1 & 2 closed

VERTICAL REFRESH RATE
Resolution		Refresh Rate	J5
»	640 x 480	60Hz	Pins 2 & 3 closed
»	800 x 600	56Hz	Pins 2 & 3 closed
»	1024 x 768	43Hz (interlaced)	Pins 2 & 3 closed
	640 x 480	72Hz	Pins 1 & 2 closed
	800 x 600	72Hz	Pins 1 & 2 closed
	1024 x 768	65Hz	Pins 1 & 2 closed

BOARD NUMBER
Board		J6	J7
»	1	Pins 2 & 3 closed	Pins 2 & 3 closed
	2	Pins 1 & 2 closed	Pins 2 & 3 closed
	3	Pins 2 & 3 closed	Pins 1 & 2 closed
	4	Pins 1 & 2 closed	Pins 1 & 2 closed

BUS MOUSE INTERRUPT
Setting		W1	W2
	IR/FONT>	Closed	Open
»	IRQ5	Open	Closed

DRAM - CHANNEL 1
Size	Bank 0	Bank 1
512KB	(4) 128KB	NONE
1MB	(4) 128KB	(4) 128KB

DRAM - CHANNEL 2
Size	Bank 2	Bank 3
512KB	(4) 128KB	NONE
1MB	(4) 128KB	(4) 128KB
