STB SYSTEMS, INC.

HORIZON-VL VER. 2

Category

Video

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

1MB

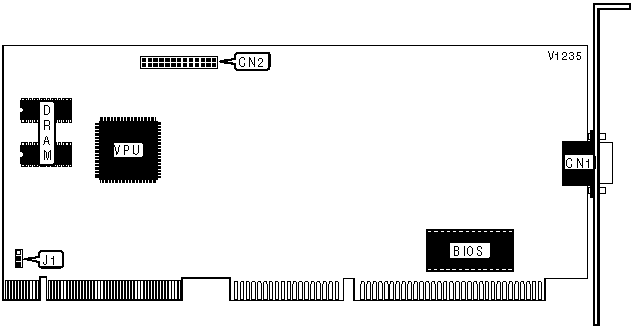

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

INTERRUPT CONFIGURATION

IRQ 2/9

J1

»

Disabled

Pins 2 & 3 closed



Enabled

Pins 1 & 2 closed
