REVEAL COMPUTER PRODUCTS

VC300

Card Type

Video card

Video Chip Set

Cirrus Logic

Maximum Video Memory

1MB

Video Types Supported

VGA

Highest Resolution Supported

1024 x 768

Data Bus

16-bit ISA

CONNECTIONS

Function

Label

Function

Label

15-pin video analog video port

CN1

Feature connector

CN2

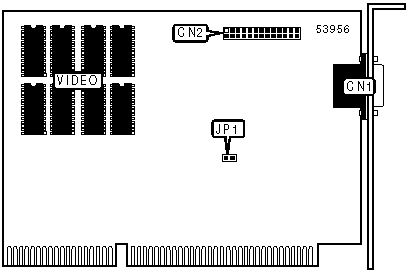

VIDEO MEMORY CONFIGURATION

Note: 1MB video memory is factory installed and is not configurable.

WAIT STATE SELECTION

Wait state

JP1

0

Open

1

Closed
