PROLINK COMPUTER, INC.

MVGA-T9660PCI

Category

Video

Video Types Supported

XVGA

Video Processor

Trident

Highest Resolution Supported

1600 x 1200

Data Bus Type

32-bit PCI

Memory Type

DRAM

Maximum Onboard Memory

2MB

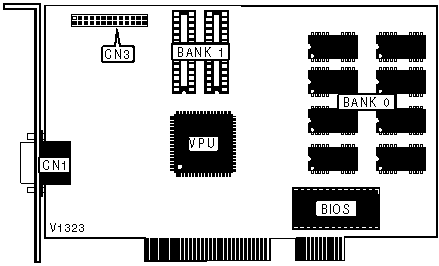

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN3

DRAM CONFIGURATION

Memory

Bank 0

Bank 1

1MB

(8) 256K x4

None

2MB

(8) 256K x4

(2) 256K x 16
