MULTIWAVE INNOVATION, INC.

MOVIEWAVE HOMEVIDEO

Card Type

Video capture board

Video Chip Set

Unidentified

Maximum Video Memory

Unidentified

Video Types Supported

VGA

Highest Resolution Supported

Unidentified

Data Bus

32-bit PCI

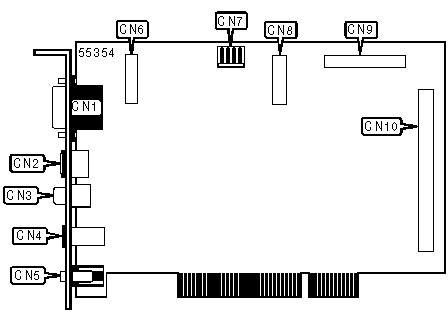

CONNECTIONS

Function

Label

Function

Label

TV cable connector

CN1

VGA to TV module interface connector

CN6

S-video in

CN2

TV tuner input connector

CN7

Composite video in

CN3

VGA to TV module interface connector

CN8

5V DC power

CN4

M-JPEG module interface connector

CN9

Audio in

CN5

M-JPEG module interface connector

CN10
