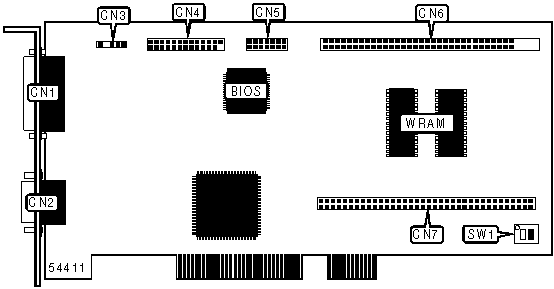

Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1600 x 1200
Maximum Video Memory	2MB WRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

CONNECTIONS
Function	Label	Function	Label
Video module feature connector	CN1	Expansion module connector - Media	CN5
15-pin analog video port	CN2	Expansion module connector - Media or RAM	CN6
Access bus connector	CN3	Expansion module connector - Media or RAM	CN7
VGA feature connector (Output only)	CN4

USER CONFIGURABLE SETTINGS
Function		Label	Position
	BIOS protected	SW1/1	Off
	BIOS unprotected	SW1/1	On
»	VGA enabled	SW1/2	Off
	VGA disabled	SW1/2	On

MISCELLANEOUS TECHNICAL NOTE

Note: The MGA Millennium WRAM memory can be upgraded to 8MB with optional memory module.

Card Type	Memory upgrade module
Maximum Video Memory	6MB

CONNECTIONS
Function	Label	Function	Label
Header connector to main board	CN8	Header connector to main board	CN8

MISCELLANEOUS TECHNICAL NOTE

Note: The MGA Millennium RAM upgrade module available with 2MB, 4MB, or 6MB of memory.

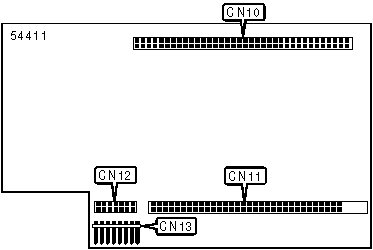

Card Type	Media expansion module
Highest Resolution Supported	1600 x 1200

CONNECTIONS
Function	Label	Function	Label
Header connector to main board	CN10	Header connector to main board	CN12
Header connector to main board	CN11	TV tuner connector	CN13

MISCELLANEOUS TECHNICAL NOTE

Note: Media XL is also available with MPEG option.
