Card Type	MPEG card
Processor	i960
Processor Speed	Unidentified
Maximum Onboard Memory	Unidentified
Video Chipset	C-Cube CL9100
Video Types Supported	NTSC, PAL, film
Formats Supported	MPEG-1, MPEG-2
Resolutions Supported	SIF, half D-1, full D-1
I/O Options	Audio line out, composite video out, D-1 digital video out, serial port
Data Bus	SCSI-2 Fast/Wide (Differential on DEC-24-DS)

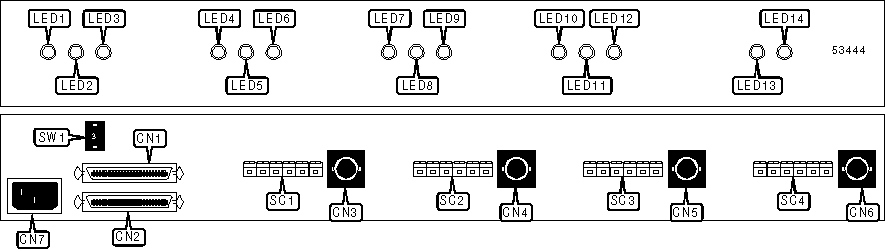

CONNECTIONS
Function	Label	Function	Label
68-pin SCSI-2 connector - external	CN1	Diagnostic serial port	CN12
68-pin SCSI-2 connector - external	CN2	SCSI ID switch	SW1
Composite video channel 1 out	CN3	Audio line 1 out - see pinout below	SC1
Composite video channel 2 out	CN4	Audio line 2 out - see pinout below	SC2
Composite video channel 2 out	CN5	Audio line 3 out - see pinout below	SC3
Composite video channel 4 out	CN6	Audio line 4 out - see pinout below	SC4
AC power in	CN7
Note:The exact location of CN12 is unidentified. It is near LED10 - LED12 inside the adapter's case.

SC1 - SC4 PINOUT
Function	Screw	Function	Screw
Left channel positive signal	1	Right channel positive signal	4
Left channel common	2	Right channel common	5
Left channel negative signal	3	Right channel negative signal	6

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Channel 1 is idle
LED1	Unidentified	Off	Channel 1 is not idle
LED2	Green	On	Channel 1 is receiving data
LED2	Green	Off	Channel 1 is not receiving data
LED3	Unidentified	On	Error condition detected on channel 1 or no card installed in channel 1
LED3	Unidentified	Off	Channel 1 is operating normally
LED4	Unidentified	On	Channel 2 is idle
LED4	Unidentified	Off	Channel 2 is not idle
LED5	Green	On	Channel 2 is receiving data
LED5	Green	Off	Channel 2 is not receiving data
LED6	Unidentified	On	Error condition detected on channel 2 or no card installed in channel 2
LED6	Unidentified	Off	Channel 2 is operating normally
LED7	Unidentified	On	Channel 3 is idle
LED7	Unidentified	Off	Channel 3 is not idle
LED8	Green	On	Channel 3 is receiving data
LED8	Green	Off	Channel 3 is not receiving data
LED9	Unidentified	On	Error condition detected on channel 3 or no card installed in channel 3
LED9	Unidentified	Off	Channel 3 is operating normally
LED10	Unidentified	On	Channel 4 is idle
LED10	Unidentified	Off	Channel 4 is not idle
LED11	Green	On	Channel 4 is receiving data
LED11	Green	Off	Channel 4 is not receiving data
LED12	Unidentified	On	Error condition detected on channel 4 or no card installed in channel 4
LED12	Unidentified	Off	Channel 4 is operating normally
LED13	Green	Blinking	Adapter is functioning normally
LED13	Green	Off	Adapter is not functioning normally
LED14	Unidentified	On	Hardware error detected
LED14	Unidentified	Off	Hardware error not detected
