NUMBER NINE VISUAL TECHNOLOGY

#9FX REALITY 772

Card Type

Video card

Video Chip Set

S3, Inc.

Maximum Video Memory

4MB VRAM

Video Types Supported

XVGA

Highest Resolution Supported

1600 x 1200

Data Bus

64-bit PCI

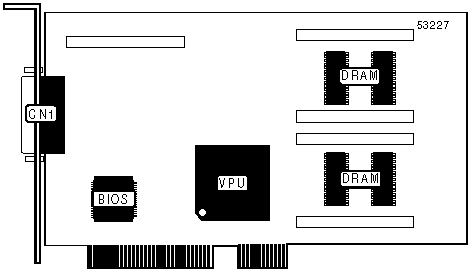

CONNECTIONS

Function

Label

Function

Label

15-pin analog video port

CN1



VIDEO MEMORY CONFIGURATION

Size

Bank 0

2MB

(4) 256KB

Note: The Reality 772 can be upgraded to 4MB of Video Memory by installing the Daughter card, however orientation of the daughter card connections is unidentified.
