MONOLITHIC SYSTEMS, INC. (COLORADO MSI)

ULTRA VGA

Card Type

Video card

Video Processor

C & T 82C452

Maximum Onboard Memory

512KB DRAM

Data Bus

16-bit ISA

Video Types Supported

VGA

Highest Resolution Supported

800 x 600

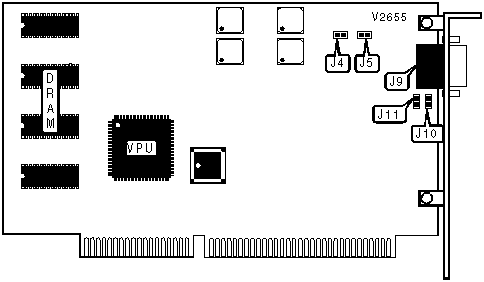

CONNECTIONS

Function

Label

15-pin analog VGA port

J9

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

J4

Unidentified

»

Factory configured - do not alter

J5

Unidentified

»

IRdisabled

J10

Open



IRenabled

J10

Closed

»

Card uses 16-bit data transfers

J11

Open



Card uses 8-bit data transfers

J11

Closed
