MICRO-STAR INTERNATIONAL, INC.
MS-4402 PCI ALI VGA CARD (VER. 1.1)
|
Card Type |
Video card |
|
Video Chip Set |
Avance Logic ALG2301 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Maximum Video Memory |
2MB DRAM |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|

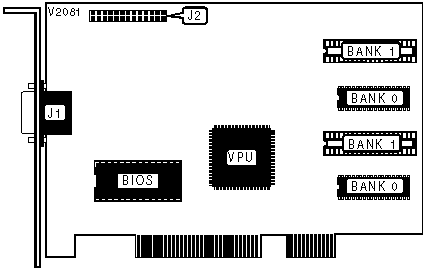

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
J1 |
Feature connector |
J2 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
None |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
