OPTIVISION, INC.

MPEG-2 DECODER

Category

Video/Sound

Video Types Supported

Unidentified

Video Processor

Unidentified

Highest Resolution Supported

704 x 576

Data Bus Type

32-bit EISA

Memory Type

Unidentified

Maximum Onboard Memory

Unidentified

CONNECTIONS

Purpose

Location

Purpose

Location

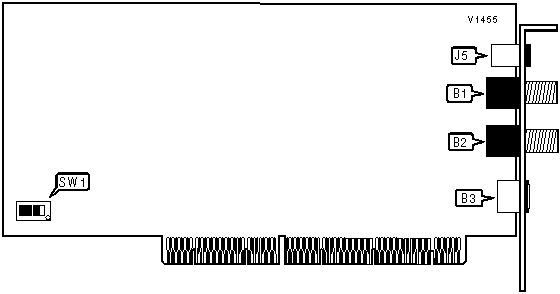

Composite video output

B1

S-video output

B3

Genlock input

B2

Audio out

J5

EISA SLOT NUMBER SELECTION

Slot ID

Hex. Equivalent

SW1/1

SW1/2

SW1/3

SW1/4

1

0x01h

Off

On

On

On

2

0x02h

On

Off

On

On

3

0x03h

Off

Off

On

On

4

0x04h

On

On

Off

On

5

0x05h

Off

On

Off

On

6

0x06h

On

Off

Off

On

7

0x07h

Off

Off

Off

On

8

0x08h

On

On

On

Off

9

0x09h

Off

On

On

Off

10

0x0Ah

On

Off

On

Off

11

0x0Bh

Off

Off

On

Off

12

0x0Ch

On

On

Off

Off

13

0x0Dh

Off

On

Off

Off

14

0x0Eh

On

Off

Off

Off

15

0x0Fh

Off

Off

Off

Off
