NUMBER NINE VISUAL TECHNOLOGY

#9FX MOTION771 VL

Category

Video

Video Types Supported

XVGA

Video Processor

S3, Inc.

Highest Resolution Supported

1600 x 1200

Data Bus Type

32-bit VESA Local Bus

Memory Type

VRAM

Maximum Onboard Memory

4MB

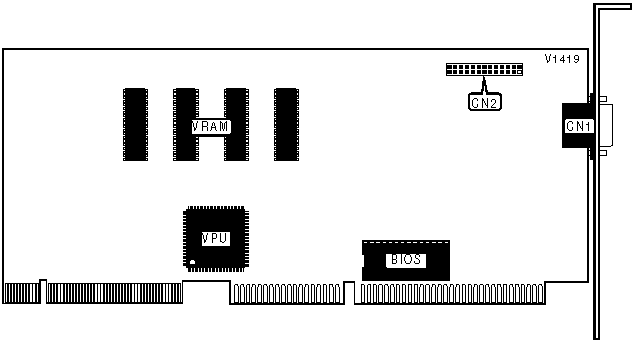

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2
