Category

Video

Video Types Supported

XVGA

Video Processor

S3

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

2MB

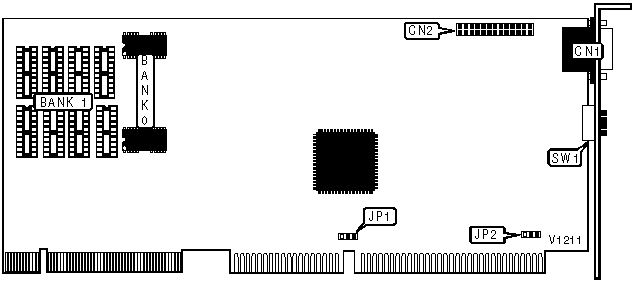

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA feature connector

CN2

MONITOR TYPE SELECTION

Type

SW1/1

SW1/2

SW1/3

SW1/4

35KHz Multi-frequency

On

On

On

Off

48KHz Multi-frequency

Off

Off

On

Off

58KHz Multi-frequency

On

Off

Off

Off

64-85KHz Multi-frequency

Off

Off

Off

Off

VESA CLOCK SPEED SELECTION

Speed

JP1

»

£ 33MHz

Pins 2 & 3 closed

>33MHz

Pins 1 & 2 closed

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

JP2

Pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 1024K x 4

NONE

2MB

(2) 1024K x 4

(8) 256K x 4
