MIRO COMPUTER PRODUCTS, INC.

MIROCRYSTAL 16SI/VL

Category

Video

Video Types Supported

XVGA

Video Processor

S3

Highest Resolution Supported

1280 x 1024

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

2MB

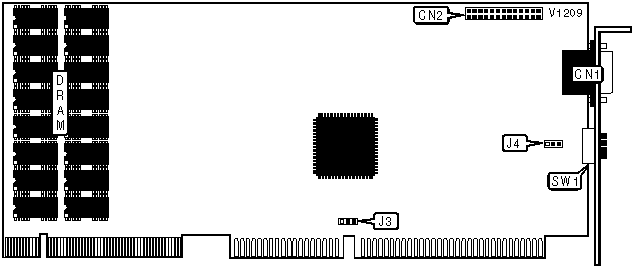

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA feature connector

CN2

MONITOR TYPE SELECTION

Type

SW1/1

SW1/2

SW1/3

SW1/4

35-48KHz Multi-frequency

Off

On

On

Off

64KHz Multi-frequency

Off

On

Off

Off

78KHz Multi-frequency

Off

Off

On

Off

82-85KHz Multi-frequency

Off

Off

Off

Off

VESA CLOCK SPEED SELECTION

Speed

J3

»

<=33MHz

Pins 2 & 3 closed



>33MHz

Pins 1 & 2 closed

16SI/VL SCREEN CONFIGURATION

Setting

J4

»

Single-screen

Pins 2 & 3 closed



Dual-screen/multiscreen

Pins 1 & 2 closed
