Category	Video
Video Types Supported	XVGA
Video Processor	Cirrus Logic
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

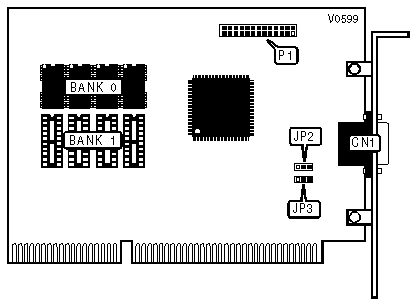

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA Feature Connector	P1

ZERO WAIT STATE
Setting	JP2
Enabled	Pins 2 & 3 closed
Disabled	Pins 1 & 2 closed

IRQ9 CONFIGURATION
IRQ9	JP3
Disabled	Pins 1 & 2 closed
Enabled	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(4) 256K x 4	NONE
1024KB	(4) 256K x 4	(4) 256K x 4
