MYLEX CORPORATION

GXE020-A/B

Category

Video

Video Types Supported

XVGA

Video Processor

TI 34020

Highest Resolution Supported

1600 x 1200

Data Bus Type

16-bit EISA

Memory Type

DRAM/VRAM

Maximum Onboard Memory

4096 DRAM/2048 VRAM

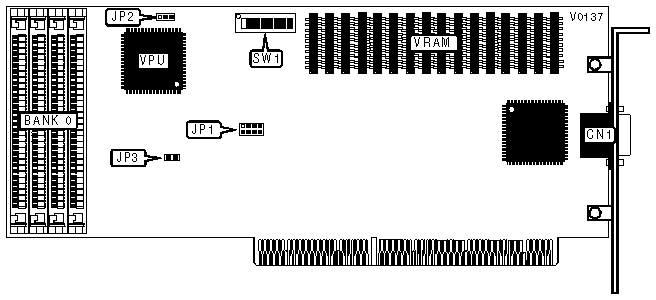

CONNECTIONS

Purpose

Location

15-pin analog video port

CN1

FACTORY CONFIGURED - DO NOT ALTER

Jumper/Switch

Position

JP1

Pins 7 & 8 open

JP2

Open

JP3

Open

SW1/1

Off

SW1/2

Off

SW1/3

Off

SW1/4

On

VIDEO INTERRUPT SELECTION

IRQ

JP1

»

No IRQ used

Open



IRQ10

Pins 1 & 2 closed



IRQ11

Pins 3 & 4 closed



IRQ12

Pins 5 & 6 closed
