OAK TECHNOLOGY, INC.

OAK-067

Category

Video

Video Types Supported

XVGA

Video Processor

OTIO67

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

512KB

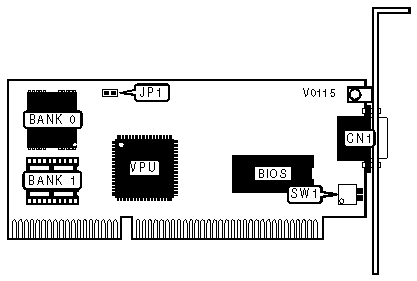

CONNECTIONS

Purpose

Location

15-pin analog video port

CN1

VIDEO INTERRUPT SELECTION

IRQ 2/9

JP1

»

Disabled

Open



Enabled

Closed

MONITOR TYPE SELECTION

Type

SW1/1

»

Color

Off



Monochrome

On

VIDEO INTERFACE CONFIGURATION

Setting

SW1/2

Interlaced

On

Non-Interlaced

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

256KB

(2) 44256

None

512KB

(2) 44256

(2) 44256
