Card Type	Video capture card
Video Chip Set	Unidentified
Maximum Video Memory	None
Video Types Supported	Monochrome, VGA
Highest Resolution Supported	2048 x 2048
Formats Supported	Monochrome images from CCIR, RS170
Data Bus	32-bit PCI

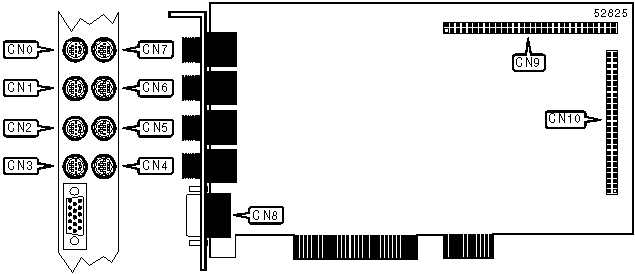

CONNECTIONS
Function	Label	Function	Label
12-pin hirose - video in 0	CN0	12-pin hirose - video in 6	CN6
12-pin hirose - video in 1	CN1	12-pin hirose - video in 7	CN7
12-pin hirose - video in 2	CN2	15-pin connector - universal camera	CN8
12-pin hirose - video in 3	CN3	60-pin connector - propriety pixelbus	CN9
12-pin hirose - video in 4	CN4	50-pin connector - propriety commandbus	CN10
12-pin hirose - video in 5	CN5
