LEADTEK RESEARCH, INC.

WINFAST 3D GD400

Card Type

Video & Audio card

Video Chip Set

SGS-Thomson STG 2000

Highest Resolution Supported

1600 x 1200

Maximum Video Memory

2MB DRAM

Data Bus

32-bit PCI

Video Types Supported

XVGA

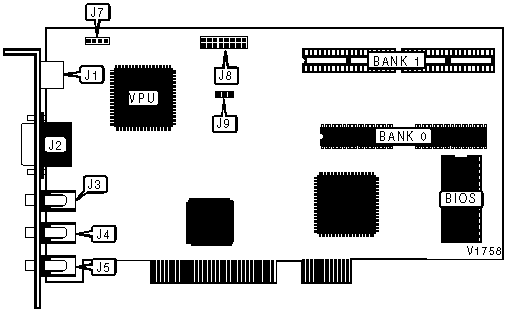

CONNECTIONS

Function

Label

Function

Label

IBM game port

J1

Audio line in

J5

15-pin analog video port

J2

CD - audio

J7

Mic in

J3

Sega Digital game port

J8

Audio line out

J4



USER CONFIGURABLE SETTINGS

Function

Label

Position

Jumper/Connector - information unavailable

J9

Unidentified

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(2) 256K x 16

None

2MB

(2) 256K x 16

(2) 256K x 16
