ICL

GA2, GA2I

Category

Video

Video Types Supported

XVGA

Video Processor

ATI 68800

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

VRAM

Maximum Onboard Memory

2MB

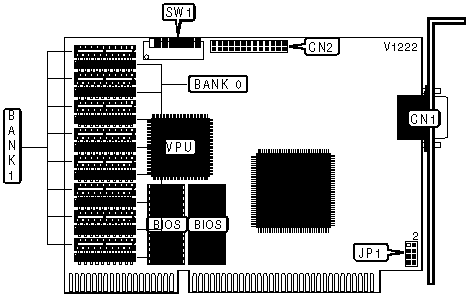

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA pass-through connector

CN2

ROM ADDRESS SELECTION

Address

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

»

CC000h

Off

Off

On

On

Off

Off

On

Off



C8000h

Off

Off

Off

On

Off

Off

On

Off



CA000h

Off

On

Off

On

Off

Off

On

Off



D0000h

Off

Off

Off

Off

On

Off

On

Off



D4000h

Off

Off

On

Off

On

Off

On

Off



D8000h

Off

Off

Off

On

On

Off

On

Off

Note: The settings above are for use in a dual-board system. If this is the only video board installed, set SW1/1 through SW1/8 to Off.

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

JP1

Pins 1 & 2 closed

VRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(8) 256K x 4

None

2MB

(8) 256K x 4

(8) 256K x 4
