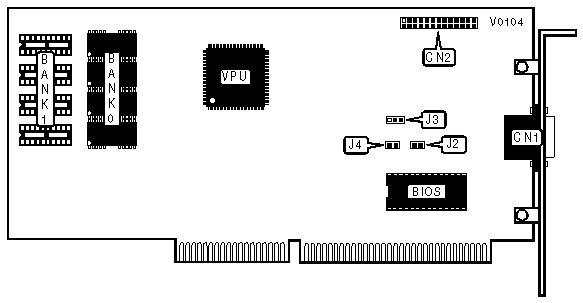

JATON CORPORATION

JAX-8212

Category

Video

Video Types Supported

XVGA

Video Processor

8900C

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

512KB

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

SCAN RATE SELECTION

Rate

J2

»

Default scan rate

Closed



48.7Khz

Open

BUS SIZE DETECT CONFIGURATION

Setting

J4

»

Autodetect

Open



Standard interface

Closed

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

J3

Pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

256KB

(2) 41256

None

512KB

(2) 41256

(2) 41256
