JOINDATA SYSTEMS, INC.

G-HOST4000

Category

Video

Video Types Supported

XVGA

Video Processor

ET-4000

Highest Resolution Supported

1024 x 768

Data Bus Type

32-bit VESA Local Bus

Memory Type

DRAM

Maximum Onboard Memory

1024KB

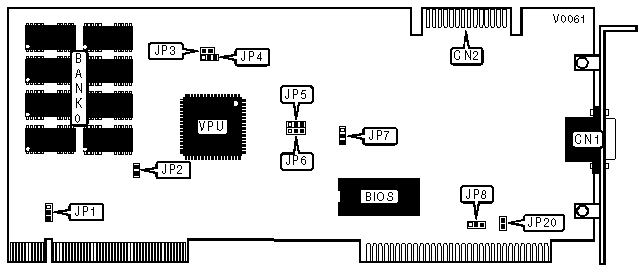

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature connector

CN2

WAIT STATE SELECTION

Wait state

JP2

»

0 wait state

On



1 wait state

Off

LOCAL BUS SELECTION

Setting

JP1

JP4

»

Enabled

Pins 1 & 2 closed

Pins 1 & 2 closed



Disabled

Pins 2 & 3 closed

Pins 2 & 3 closed

MEMORY BUS CONTROL SIGNAL CONFIGURATION

Signal

JP3

»

Originate G486PLB motherboard

On



Originate G-Host4000 VGA card

Off

CLOCK CONFIGURATION

Generator

Switch

JP5

JP6

JP7

»

Enabled

Enabled

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed



Disabled

Disabled

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

BIOS SELECTION

BIOS

JP8

»

32KB

Pins 1 & 2 closed



64KB

Pins 2 & 3 closed

IRQ2 LINE STATUS CONFIGURATION

Setting

JP20

»

Enabled

On



Disabled

Off
